Test & Measurements

제품특징
  • 11가지 입력 신호 측정:
  • DC 전압, DC 전류, 실제 RMS AC 전압, AC 전류, 2선 및 4선 저항, 주파수, 연속성, 다이오드 테스트, 온도 및 정전 용량
  • 듀얼 측정 7인치 컬러 디스플레이
  • 속도에 민감한 측정을 위해 초당 최대 110회까지 빠른 판독 속도
  • 데이터 기록 및 분석을 위한 5,000 포인트 로깅 메모리
  • 유연한 PC 연결을 위한 표준 USB 및 LAN 지원
  • 반복 테스트 설정을 위한 구성 복사/로드가 가능한 USB 플래시 드라이브 지원
  • 원격 제어 및 데이터 로깅을 위한 PathWave BenchVue DMM 소프트웨어 포함




General characteristics



Characteristics



Power supply

100 V / 120 V (127 V) / 220 V (230 V) / 240 V ± 10%



AC line frequency 45 Hz – 66 Hz, automatically sensed at power on

Power consumption

13 VA maximum, < 6.6 W average



Operating environment

Full accuracy to 80% RH for 0 ºC to 30 ºC (non-condensing)

Full accuracy to 40% RH for 30 ºC to 55 ºC (non-condensing)

Altitude up to 3000 meters

Operating temperature

Full accuracy for 0 ºC to 55 ºC

Storage temperature

- 40 ºC to 70 ºC



Safety and EMC compliance

Refer to Declaration of Conformity for the



 latest revisions of regulatory compliance at:



 www.keysight.com/go/conformity

Measurement category

CAT II, 300 V: CAT I 1000 Vdc 750 Vac rms, 2,500 Vpk transient over-voltages, pollution degree 2

Shock and vibration

Tested to IEC/EN 60086-2

Dimensions (HxWxD)

165 mm x 314 mm x 119 mm (6.5 in x 12.6 in x 4.7 in)

Weight

3.35 kg

Warm-up time

90 minutes


DC specifications




Function



Range 1

Test current or burden voltage

Input impedance

1 year

23 ºC ± 5 ºC

Temperature



 coefficient / ºC 0


ºC – 18 ºC

28 ºC – 55 ºC





DC voltage

100.000 mV

-

10 MΩ or > 10 GΩ

0.018 + 0.008

0.0020 + 0.0008

1.00000 V

-

10 MΩ or > 10 GΩ

0.015 + 0.005

0.0015 + 0.0008

10.0000 V

-

10 MΩ

0.025 + 0.005

0.0020 + 0.0008

100.000 V

-

10 MΩ

0.025 + 0.005

0.0020 + 0.0008

1000.00 V

-

10 MΩ

0.027 + 0.005

0.0020 + 0.0008







Resistance 2

100.000 Ω

1 mA

-

0.065 + 0.010

0.0080 + 0.0008

1.00000 kΩ

500 µA

-

0.065 + 0.008

0.0080 + 0.0005

10.0000 kΩ

100 µA

-

0.065 + 0.005

0.0080 + 0.0005

100.000 kΩ

10 µA

-

0.065 + 0.005

0.0080 + 0.0005

1.00000 MΩ

1 µA

-

0.065 + 0.005

0.0080 + 0.0005

10.0000 MΩ

100 nA

-

0.300 + 0.005

0.0250 + 0.0005

100.000 MΩ

100 nA / 10 MΩ

-

2.000 + 0.005

0.3000 + 0.0005



DC current 3

10.0000 mA

< 0.02 V

-

0.10 + 0.015

0.008 + 0.0015

100.000 mA

< 0.2 V

-

0.10 + 0.007

0.008 + 0.0010

1.00000 A

< 0.3 V

-

0.30 + 0.015

0.019 + 0.0015

3.0000 A 6

< 0.9 V

-

0.30 + 0.007

0.019 + 0.0010

Continuity 4

1000 Ω

0.5 mA

-

0.1 + 0.1

0.009 + 0.005

Diode test 5

1.0000 V

0.5 mA

-

0.05 + 0.10

0.005 + 0.005



AC specifications

Accuracy ± (% of reading + % of range):





Function



Range 1



Frequency

1 year

23 ºC ± 5 ºC

Temperature



 coefficient / ºC



 0 ºC – 18 ºC

28 ºC – 55 ºC









True RMS AC voltage 2



100.000 mV

20 Hz – 45 Hz

1.0 + 0.1

0.02 + 0.02

45 Hz – 10 kHz

0.2 + 0.1

0.02 + 0.02

10 kHz – 30 kHz

1.5 + 0.3

0.05 + 0.02

30 kHz – 100 kHz 3

6.0 + 0.3

-



1.000 00V to 750.00 V

20 Hz – 45 Hz

1.0 + 0.1 4

0.02 + 0.02

45 Hz – 10 kHz

0.2 + 0.1

0.02 + 0.02

10 kHz – 30 kHz

1.5 + 0.3

0.05 + 0.02

30 kHz – 100 kHz 3

3.0 + 0.3 5

0.10 + 0.02



True RMS AC current 2



10.0000 mA to 3.000 0A 6

20 Hz – 45 Hz

1.5 + 0.1

0.02 + 0.02

45 Hz – 1 kHz

0.5 + 0.1

0.02 + 0.02

1 kHz – 10 kHz 7

2.0 + 0.2

0.02 + 0.02



Frequency accuracy ± (% of reading + 3 counts):




Function



Range 1



Frequency

1 year

23 ºC ± 5 ºC

Temperature



 coefficient / ºC



 0 ºC – 18 ºC

28 ºC – 55 ºC

Frequency

100.000 mV to 750.00 V

20 Hz – 300 kHz 2

0.025 + 3

0.005

10.0000 mA to 3.0000 A

20 Hz – 10 kHz 3

0.025 + 3

0.005



Frequency resolution:


Range1


Frequency


Resolution





Frequency



100.000 mV to 750.00 V

10.0000 mA to 3.0000 A

012.000 Hz - 119.999 Hz

0.001 Hz

0.12000 kHz - 1.19999 kHz

0.00001 kHz

1.2000 kHz - 11.9999 kHz

0.0001 kHz

12.000 kHz - 119.999 kHz

0.001 kHz

0.12000 MHz - 1.19999 MHz

0.00001 MHz






Digital multimeter

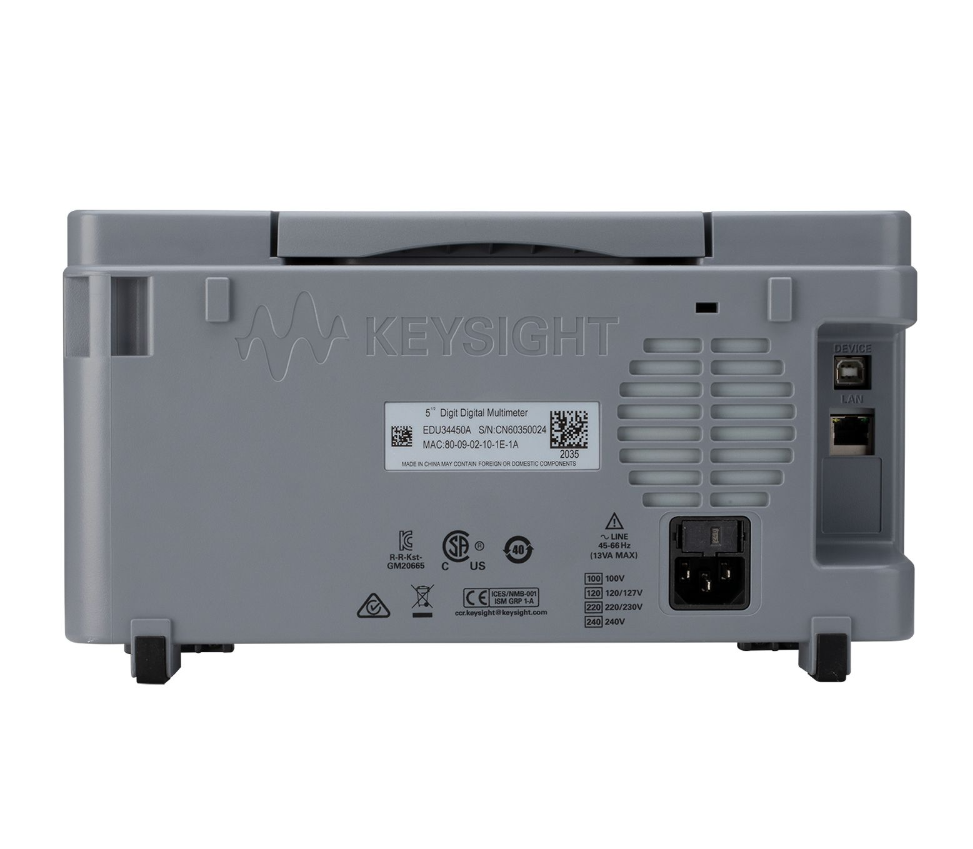

EDU34450A                  5½-digit DMM





Standard shipped items

Power cord, test leads





Keysight optional accessories

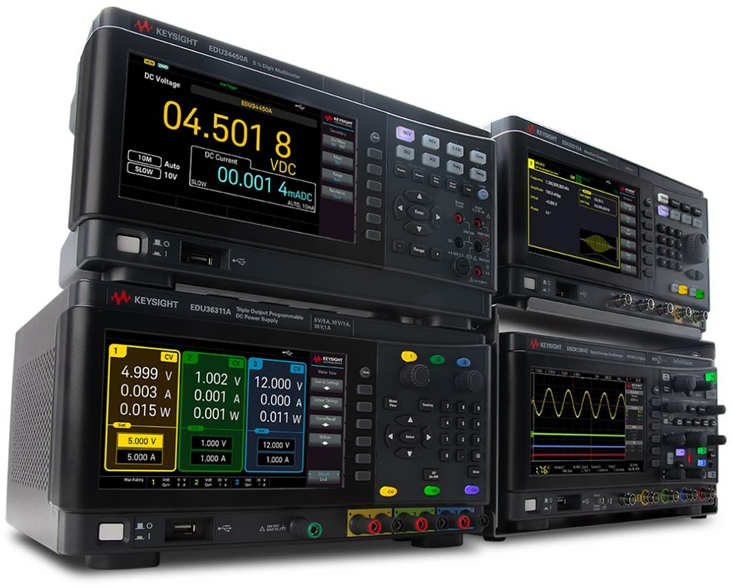

EDU190A                     Instrument stacking kit (to use with other education series instruments) 34138A         Test lead set

E2308A                        Thermistor temperature probe



34330A                         30 A current shunt





Other education series products

EDU33211A                  Waveform generator, 20 MHz, one channel EDU33212A Waveform generator, 20 MHz, two channels EDU36311A                                    DC power supply, triple output

EDUX1052A                 InfiniiVision 1000 X-Series oscilloscope, 50 MHz, analog channels



EDUX1052G                 InfiniiVision 1000 X-Series oscilloscope, 50 MHz, analog channels, with a built-in waveform generator
